Fellows Pfauter P630 CNC Conversion
Have one to sell?
ConditionUsed
1 available

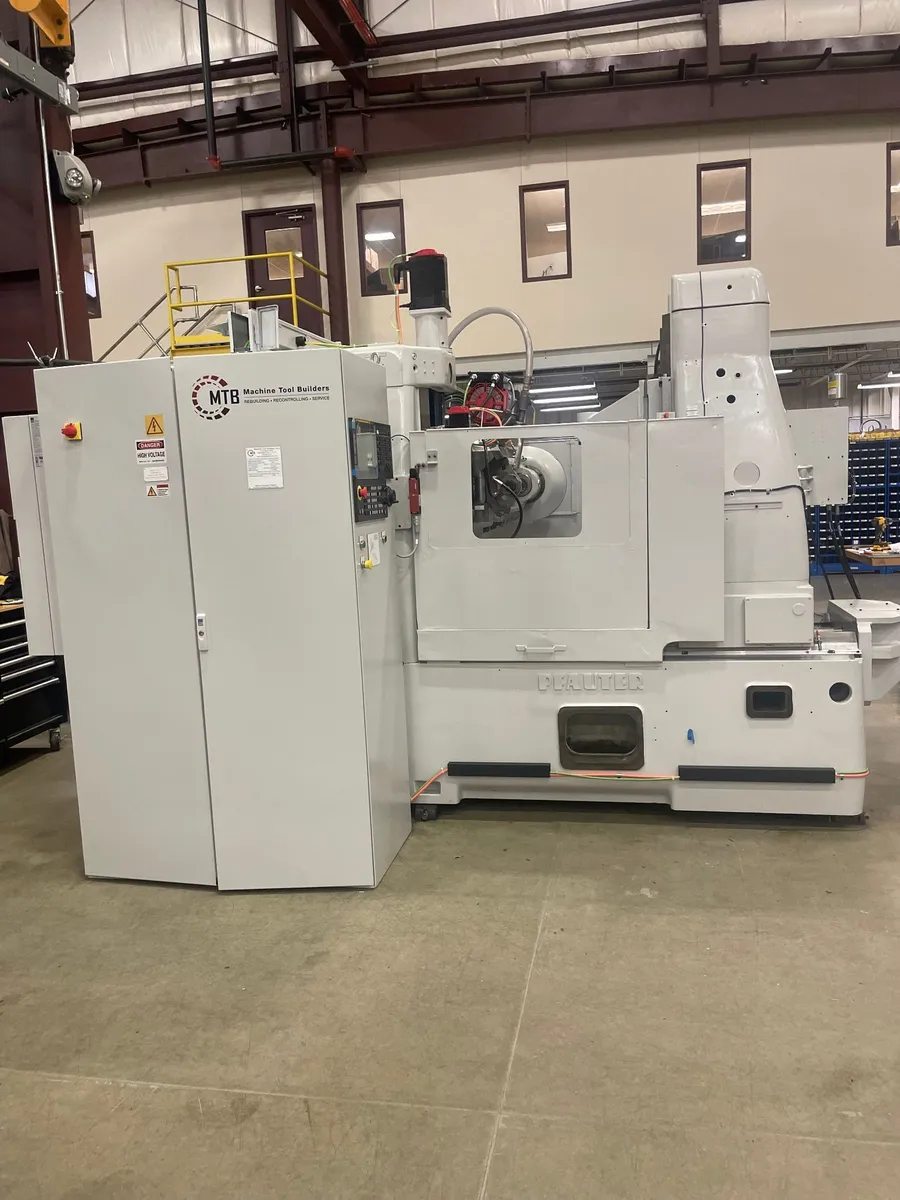

IN STOCK, ONGOING CNC CONVERSION IN PROGRESS - Delivery Roughly 4 months from Order placement. Delivery is contingent upon workload when order is placed. Please note that pictures are a blend of a previously completed P630 and the core machine we have started this program with. The core machine pictured here is expected to be finished much like the previously completed machine.
Fellows Pfauter P630 In staging for CNC conversion in 2025.
This machine is slated to be rebuilt and simultaneously converted to CNC operations using a Fanuc 0iM-F Plus CNC and Fanuc Alpha series HVi servo drives and spindle controls. As part of the rebuild the guideways will be addressed as well as lead screws replaced with new ballscrews. All worn or damaged parts will be repaired or replaced as required. All electrical systems and wiring will be replaced. All Hydraulic and lubrication systems will be inspected and verified as fully operational. All worn, poorly performing or leaky components will be replaced.
SCOPE OF WORK:
* This machine is being Partially rebuilt - also called a 'Re-Certification' process.
* All lead screws replaced with ball screws.
* All ways checked for Straightness and stoned to remove high spots.
* Worktable bearing surface checked and adjusted.
* All new Hydraulics and Lubrication Systems.
* All new machine wiring.
* All new electrical cabinet with all new equipment inside.
* New feedback systems and wiring.
* Fanuc 0iMF CNC.
* Fanuc Alpha HVi series drives and motors.
* Machine and guarding completely painted.
* All seals on hob head replaced.
* All tapered bearings checked and adjusted.
* Conversational Programming.
Pfauter P630 Re-Control / Re-Certification program:
Mechanical Specifications:
Number of CNC controlled axes: 4 - X,Y,Z,C.
Number of Optional CNC controlled axes: 1 - A.
Number of CNC controlled spindles: 1.
Pitch rating 2.54 DP 10 Mod.
Maximum workpiece diameter 24.803 in 630 mm.
Maximum axial travel 16.732 in 425 mm.
Worktable diameter 21.654 in 550 mm.
Index worm diameter 21.654 in 550 mm.
Table bore diameter 4.921 in 125 mm.
Maximum radial center distance 1.969 in 50 mm.
Maximum radial center distance 16.732 in 425 mm.
Minimum axial height from table top 5.709 in 145 mm.
Maximum axial height from table top 22.441 in 570 mm.
Maximum hob diameter 7.559 in 192 mm.
Maximum hob length 8.465 in 215 mm.
Maximum hob shift travel 7.874 in 200 mm.
Minimum number of teeth 6.
Maximum swivel angle -45 deg +45 deg.
Hob speed range (Infinitely Variable) 62 to 390 RPM.
Taper in hob spindle Morse #5.
Rapid traverse radial 78.740 in 2000.000 mm/rev.
Rapid traverse axial 78.740 in 2000.000 mm/rev.
Length 235.433 in 5980 mm.
Width 114.764 in 2915 mm.
Height 135.039 in 3430 mm.
Machine Weight 18078 lbs 8200 kg.
Plant power 460 VAC 60 Hz.
Controls:
Fanuc 0iM-F Plus CNC.
Fanuc Alpha HVi Drives and Motors.
Base Software:
Three passes (same or alternating directions).
Hobbing of four sequential gears in one cycle.
Inch / Metric switchable.
Incremental shifting by part count.
Crowning with high point offset capability.
Taper compensation.
Axial or radial/axial cycles.
Radial only cycle.
Programmable dwell.
Automatic or manual overtravel and approach calculations.
Simple single indexing cycle.
Tool offsets for quick size changes.
Workpiece counter.
Multiple program storage and retrieval.
Shifting with table compensation.
Auxiliary function selection (tailstock/clamping seq.).
Swing-away type tailstock with manual mechanical lever.
Automatic or manual hob swivel angle calculation.
• Integral base coolant tank.
• Integral Chip Conveyor.
• One 1.25″ hob arbor and nut.
• Tailstock - Swing-Away type.
• Two copies of the operations manuals.
• Two copies of the maintenance documentation.
• 1 Year warranty on machine and controls.
