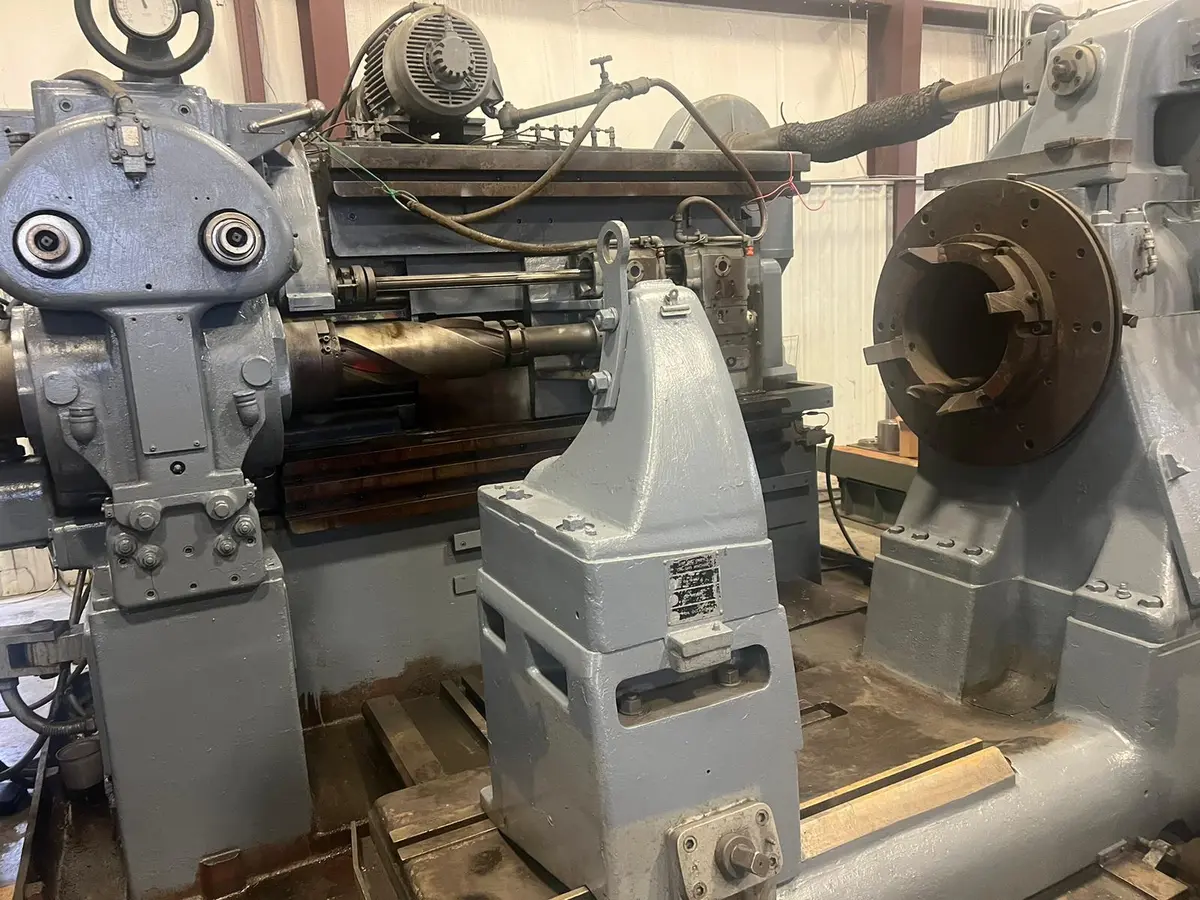

Sykes 1600-H Herringbone Generator
Have one to sell?
ConditionUsed
1 available
Inch mm
Maximum Workpiece Diameter (External) 63 1660
Maximum Workpiece Diameter (Internal) 66 1676
Diametral Pitch 16-1.5 1.6-17
Spur or single helical Facewidth 10 254
Double Helical Facewidth 18 457
Internal Gear Facewidth 8 203
Work Spindle Bore 12 305
Main Motor Dual Range Power 10 10 HP
8 Ranges of cutting speeds from 15 120 SPM
Number of Cutting Speeds 8 8
Number of Feeds 4 4
4 Generating feeds can be selected
Depth Infeed is done manually
Operator pendant control
30 degree guides
outboard support and steady
large hole through spindle
cutter adapters
Large assortment of change gears
Rim steady rest
Machine was purchased in good running condition . the machine is equipped with 30 degree guides and is complete with good assortment of change gears and some tooling. Machine can be inspected under power in customers facility in Texas with proper notice . The machine specifications and model number will be determined shortly and additional specifications will be made available contact Tony Johnson at tjohnson@machinetoolbuildetrs.com or visit http://www.machinetoolbuilders.com for more machines available or to receive a formal quote and pricing !!! You can also view this machine at our partners site. https://pisellient.com/brands/sykes
Metric
| Max Dia. Gear | 1,524 mm |
| Max Diameter Pitch | 1.5DP (16Mod) |
| Axis | 3 |
| Horizontal/Vertical | Horizontal |
| Weight | 55000lbs |
Inch mm
Maximum Workpiece Diameter (External) 63 1660
Maximum Workpiece Diameter (Internal) 66 1676
Diametral Pitch 16-1.5 1.6-17
Spur or single helical Facewidth 10 254
Double Helical Facewidth 18 457
Internal Gear Facewidth 8 203
Work Spindle Bore 12 305
Main Motor Dual Range Power 10 10 HP
8 Ranges of cutting speeds from 15 120 SPM
Number of Cutting Speeds 8 8
Number of Feeds 4 4
4 Generating feeds can be selected
Depth Infeed is done manually
Operator pendant control
30 degree guides
outboard support and steady
large hole through spindle
cutter adapters
Large assortment of change gears
Rim steady rest
