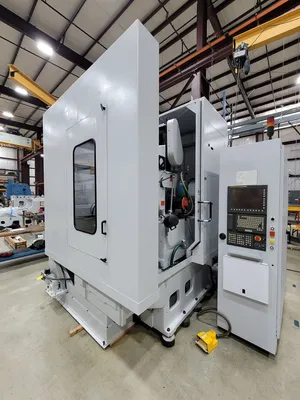

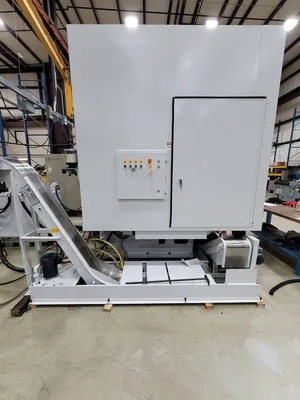

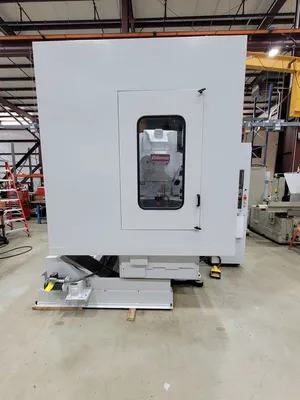

| Max Dia. Gear | 15.748" | 400 mm |
| Max Diameter Pitch | 3.5DP (7.25 Mod) | 3.5DP (7.25 Mod) |
| Axis | 5 | 5 |
| Horizontal/Vertical | Vertical | Vertical |
| Control | CNC (Fanuc 310i-Model A5) | CNC (Fanuc 310i-Model A5) |
| Dimensions | L 12.2' (3.7m) x W 6.8' (2.1m) x H 7.6' (2.3m) | L 12.2' (3.7m) x W 6.8' (2.1m) x H 7.6' (2.3m) |
| Weight | 18,500lbs (8,400kg) | 18,500lbs (8,400kg) |
CNC CONTROL DETAILS:
Number of CNC controlled axes 5
GE Fanuc Alpha HVi Series Digital servo drives & servomotors with absolute feedback for all machine axes.
Number of CNC controlled spindles 1
GE Fanuc 310i-A5 Dual Path CNC w/15" Color TFT Display. Pentium 1.5Ghz, 1024 MB Ram, Touch Screen, 40GB HDD, Ethernet Port & Windows XP OS.
SHAPING SOFTWARE DETAILS:
MTB Conversational MTB Conversational based platform within the CNC; CNC based using Macro executor.
Up to four sequential surfaces (Only practical if elevation setting is under CNC control)
Up to five cuts per cycle
Spiral or Plunge infeed cycle
Programmable rotary dwell
Digressive infeed feed rate
Inch / Metric switchable
Spiral out of cut
M and G code programming is allowed with conversational programming present.
Multiple program storage and retrieval
Quick recut cycle
Auxiliary function selection (tailstock/clamping seq.)
Automatic cutter indexing
Orientation of cutter and workpiece
Clamp avoidance
Slotting capability
Programmable elevation – amount depends on stroke length
MACHINE DETAILS:
Pitch rating 3.50 DP 7.26 Mod
Maximum workpiece diameter 400.00 mm 15.75 in
Maximum axial travel 170.00 mm 6.69 in
Worktable diameter 526.00 mm 20.71 in
Table bore diameter 190.00 mm 7.48 in
Maximum facewidth 127.00 mm 5.00 in
Maximum radial center distance 370.00 mm 14.57 in
Minimum radial center distance -10.00 mm -0.39 in
Stroking speed range 20 to 800 RPM
Spindle Power Hydraulic
Rapid traverse radial 2000.00 mm/min 78.74 in/min
Machine Weight 18500 lbs 8392 kg
Plant power 460 VAC 60 Hz
Length 3700.00 mm 145.67 in
Width 2100.00 mm 82.68 in
Height (No riser) 2300.00 mm 90.55 in
This equipment has been sold. Similar equipment available now is shown below.
