Burri PM550T Wheel Pre-Profiling Machine
Have one to sell?
ConditionNew
New

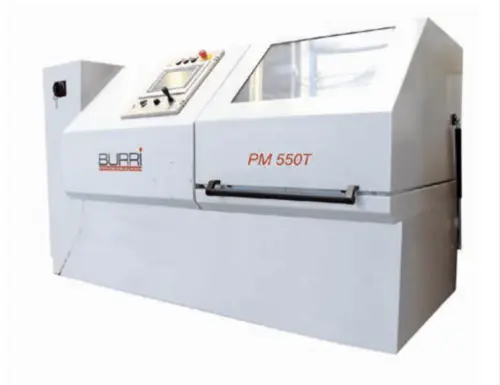

The Burri PM550T grinding wheel profiling machine has a stable machine bed with stress relieved, welded construction designed utilizing finite elements analysis. The working chamber for receiving the profiling unit incorporates an outlet for abrasive dust and connection for an industrial vacuum cleaner. The traversing cross slide has preloaded linear guide rails and the ball-screw with AC Servomotors is installed in a sealed, dust-free housing for long service life. Dust-free operation is ensured by a full machine enclosure with an easy access hinged door. Operation of the machine is user-friendly and thus easy to learn in a short time: A dialogue-based user interface features easy menu navigation and a logical structure. It proposes automatically a program for the grinding wheel to be processed. The program sequence is fully automatic. Optionally, a CNC software package is available. As a result, all profile shapes can be realized. Digital drives and absolute measuring systems meet the highest standards.

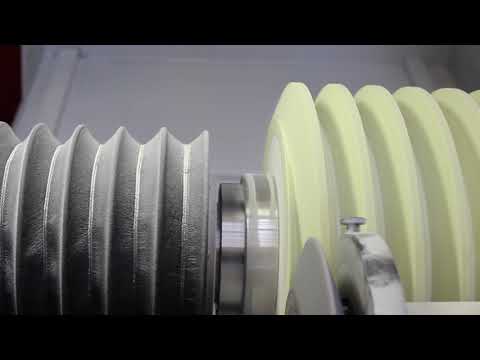

Burri PM 550T Wheel Dressing System:
Technical Data (depending upon profiling unit):
WORM GRINDING:
Number of Starts 1-9
Smallest grinding wheel diameter: 100mm / 3.93 Inches
Maximum grinding wheel diameter: 550mm / 21.65 Inches
Maximum Wheel width: 230mm / 9.055 Inches
Maximum Pitch 0.5-16 Module / 50.8 - 1.58 DP
FORM GRINDING:
Maximum Pitch 40 Module / 0.635 DP
Maximum Grinding Wheel Width 150mm / 5.9 Inches
Maximum grinding wheel diameter: 550mm / 21.65 Inches
HORIZONTALLY CONFIGURED:
Electrical cabinet according to VDI fitted to the machine
(also during transport)
Operating voltage: 400 V, AC/50Hz or 60Hz
Control voltage: 24 V, DC
Power requirement: 11 kW up to 14 kW
(depending on the vacuum system)
Net weight: 1,700 kg
floor space: 3500 x 2500 mm
Machine color: RAL9010 pure white
Capable of Pre-Dressing Grinding wheels for:
------------------------------------
Gear Grinders
Profile Grinders
Rack Grinders
Flat Grinders
Cylindrical Grinders
- A 3rd Party CAD/CAM System produced by EZ-CAM is available to facilitate dressing non-traditional grinding wheels. EZ-CAM Software quoted herein is using European pricing and subject to alterations if sold in USA with regard to licensing fees and training that are applicable.
- With use of an optional C-Axis system, Burri offers the most flexible wheel dressing system available.
