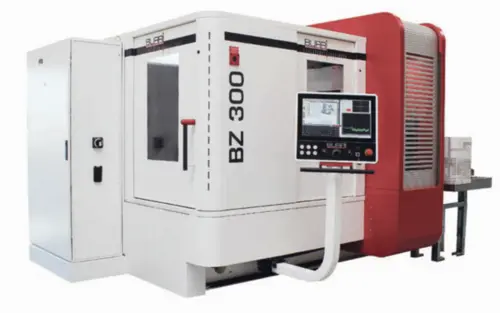

The Burri Model BZ 300 is the veritable flagship of the Burri line first shown to the world in 2019. All those rebuilds, all of the prior designs, combined with lessons learned and listening to customer experiences have fused together to create the BZ300. And Burri once again sets new standards in a modular platform for gear grinding operations.
Designed with 300mm OD capability with automation, in a pinch 400mm can be handled when loaded manually.
The modular construction of this design allows for a series of 'tools' we can incorporate to address your particular production needs - to wit:
- A second dressing spindle can be integrated for holding the dressers for prfile and worm grinding or a radius dresser for root fillet requirements.
- Both dressing spindles can be swiveled via an NC axis.
- A swiveling tailstock is available for shaft-type parts.
- The loading station typically incorporates an oil centrifuge but can be upgrade with additional functions such as:
- Workpiece measuring.
- Brushing.
- Laser Marking.
- Etc.
- The standard Gantry-Style loader can be configured as a conveyor belt for batch-type production.
Rebuilding & improving existing generating grinding machines is in Burri's DNA since 2002. Along the way, NEW machines were developed along with rebuilds. Now there are more than 100 Burri machines sold and in operation throughout the world. Even mother machine builders use Burri for the more 'difficult' applications...
BZ 300 GENERAL SPECIFICATIONS METRIC INCH
----------------------------------------------------------------------
Description: INCH METRIC
Workpiece Max OD Manual load 15.75 400
Workpiece Max OD with Automation 11.81 300
Workpiece Min OD 0.20 5
DP / Module 25.4 -3.62 1.0 - 7
DP / Module (Optional) 72.57 - 25.4 0.35 - 1
*Additional Sensor Required
Workpiece Length Tailstock to table** 25.59 650
Helix Angle +45 -45 Degrees
Workpiece Weight 176 lbs 80 kg
Workpiece Weight (w/Loader) 66 lbs 30 kg with loader
Max Workpiece Speed 3000 RPM
Grinding Pass 15.75 400
Max Cutting Speed 3149 80 m/sec
Max Grinding Wheel Diameter 11.81 300
Grinding Wheel Width 4-7.87 104-200
Dressing Disk Diameter 4.72-9.44 120-240
* For grinding modules from 0,35‐1,0 mm an additional sensor is required
** Minus clamping tools and tailstock center
B&R Controls and Servos with Hybrid Systems - Motor & Encoder in one cable.
B&R Acopos-Multi Controller P3 with Power Regeneration.
B&R Operating Panel AP993 with 21.5" Touch Screen Monitor.
Dittel wheel balancing system with integrated acoustic touch control.
Continuous Shifting during Grinding Process.
Profile & Lead Modifications.
Festo Pneumatic Componentry.
Machine Stack Signal Lamp.
B & C Axes are water-cooled integrated spindles.
Remote Diagnostics.
Conversational Programming.
Manual or Gantry Load.
Optional Part Stocking Magazine.
Generative Gear Grinding.
Profile Gear Grinding.
Worm Gear Grinding.
Coolant system w/Filtration & Chillers.
Modular Design by "Slice" System.
