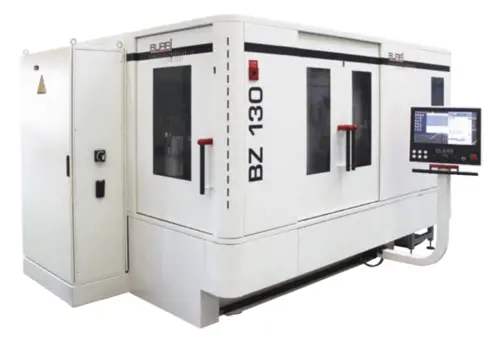

The Burri Model BZ 130 is the first complete gear grinding machine internally-developed by Burri and sets new standards in generating grinding. The patented axes configuration stands out from contemporary design philosophies and allows for a very compact design. The complete space requirement is only 4.2 square meters (45 square feet).
The BZ 130 features world-class features including:
-Bias / Twist Control.
-Asymmetrical Gears.
-Line Dressing.
-Single Flank Dressing.
-Constant Surface Speed Sensing.
-Large wheel width facilitates segmented grinding worms for roughing, finishing & polishing.

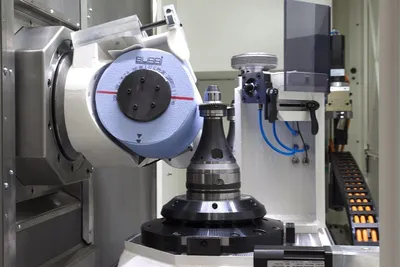

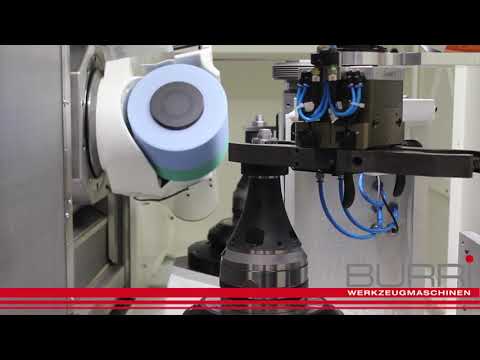

-Grinding wheels are mounted directing on the spindle without flanges - no crane required.
-Unbeatable energy efficiency - 10 kVA in production with loading systems!
Designed from the start as a double spindle machine with a chip-to-chip time of 2 seconds and an integrated loading system this machine is optimally designed for high production.
For workpiece storage, Burri offers basket cells, conveyor belts as well as more customized solutions dependent upon your requirements. Existing or customized gear storage can also be integrated.
Rebuilding & improving existing generating grinding machines is in Burri's DNA since 2002. Along the way, NEW machines were developed (such as the BZ 130!) along with rebuilds. Now there are more than 100 Burri machines sold and in operation throughout the world. Even mother machine builders use Burri for the more 'difficult' applications...

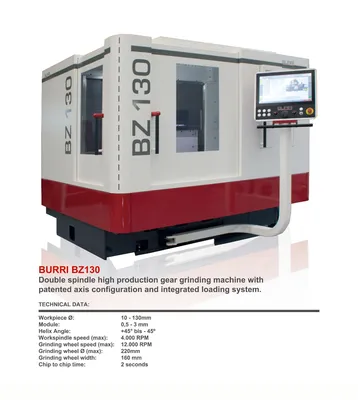

BZ 130 GENERAL SPECIFICATIONS METRIC INCH
-----------------------------------------------------
Workpiece Diameter Minimum 5 mm 0.19 Inch
Workpiece Diameter Maximum 130 mm 5.11 Inch
Module Minimum 0.5 mm 50.80 DP
Module Maximum 3 mm 8.46 DP
Maximum # Starts 7
Chip to Chip time 2 Seconds
Helix Angle ±45 Degrees
Workpiece Overall Length 500 mm 19.68 Inch From Table to Tailstock
Workpiece Weight Maximum 10 kg 22.04 Lbs. No Loader
Workpiece Weight Maximum 5 kg 11.02 Lbs. With Loader
Workpiece Speed Maximum 4000 RPM
Grinding Pass Length 300 mm 11.81 Inch
Grinding wheel speed 80 m/sec 262.46 ft/min
Grinding Wheel Max Diameter 220 mm 8.66 Inch
Grinding Wheel Max Width 160 mm 6.29 Inch
Dressing Disc Diameter Minimum 120 mm 4.72 Inch
Dressing Disc Diameter Maximum 140 mm 5.51 Inch
B&R Controls and Servos with Hybrid Systems - Motor & Encoder in one cable.
B&R Acopos-Multi Controller P3 with Power Regeneration.
B&R Operating Panel AP993 with 21.5" Touch Screen Monitor.
Dittel wheel balancing system with integrated acoustic touch control.
Continuous Shifting during Grinding Process.
Profile & Lead Modifications.
Festo Pneumatic Componentry.
Machine Stack Signal Lamp.
B & C Axes are water-cooled integrated spindles.
Remote Diagnostics.
Conversational Programming.
Manual or Gantry Load.
Optional Part Stocking Magazine.
Generative Gear Grinding.
Coolant system w/Filtration & Chillers.
Modular Design by "Slice" System.
Integrated Electrical Cabinet in Machine Base - Small Machine Footprint!
