Donner + Pfister (D+P) ES4100 Portable Pitch Tester

Description

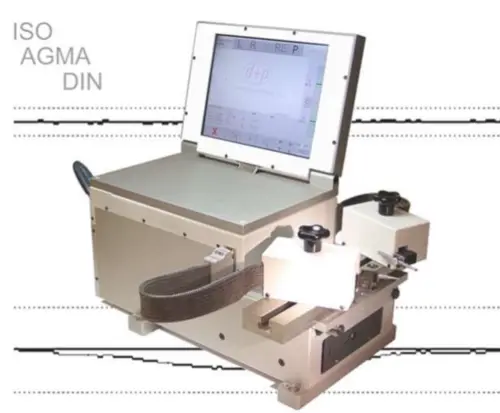

The new portable pitch measuring instrument ES 4100 offers an extremely exact method of measurement based on the principle of chord measurement (comparator method). A high degree of operational convenience is possible due to the built-in processing of the measured data. The quality level of the gear teeth is easily determined thanks to the evaluation software according to ISO, DIN or AGMA standards. The measured values are displayed on a small 4.3"TFT display. The evaluation is displayed via WiFi on a rugged 10.1" tablet with Windows 10 professional and can be stored as a PDF file or printed out. Existing pitch measuring instruments MAAG ES401 can also be updated on request. The portable pitch measuring instrument can be used in many production locations. The only prerequisite for its use is a slowly rotating work-table or an appropriate arrangement between centers, where the work piece to be measured can be accommodated. The instrument is therefore employed directly on the machine tool or as a supplementary device on measuring centers. The operator is guided through the setting up and the measurement. The tuition time is minimal, and the measurements are performed automatically. The measurements are stored automatically and can be recalled via the part numbers identifications.
