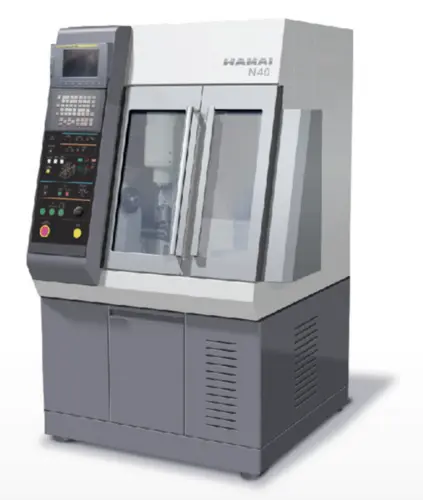

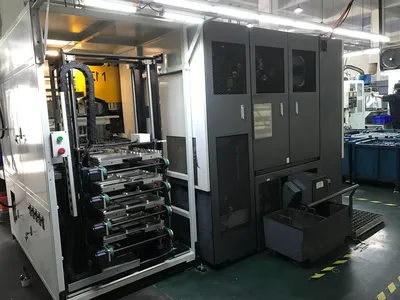

Hamai N40 Horizontal CNC Gear Hobbing Machine
Have one to sell?
ConditionNew
New
The Hamai N40 gear hobbing machine is a revolutionary workhorse first employed in mass production starting in 1988. You'll find hundreds of them quietly producing small gears in mass production for small motors, OEM equipment and other applications where large volumes of high precision helical or spur gears are required day in and day out.
Designed from the start with state of the art technology, these machines are built with 5 - 7 CNC controlled axes, direct-drive work tables & hob heads as well as optional synchronized counter spindles for (tighter) high-tolerance work. The N40 machine has a high speed cutter spindle for cutting gears up to Module 0.75 (1.0M with free-cutting materials) either WET or DRY, reliable Fanuc Series 31i CNC controls and drive system with user friendly conversational data input.
Known for their heavy-duty construction, Hamai horizontal hobbers are known in tight circles for their high accuracy and stability in production applications. In many cases, gears are produced with similar AGMA quality levels as ground gears. As a stable platform for DRY cutting, these compact machines can be configured for dedicated or flexible production scenarios and can even be kitted out for skive hobbing of hardened gears.
The N40 model is the BASE model and comes equipped for the US Market with Options added (and available Options) per below.
HAMAI N40 SPECIFICATIONS:
MACHINE CAPACITY: METRIC INCH
Maximum Work Piece Diameter 40 mm 1.6"
Max Work Piece Dia (w/30mm Hob) 20 mm 0.79"
Maximum Workpiece Length 50 mm 1.9"
Maximum Module (1.0 Free Cut) 0.75 Module 33.9 DP
See "Working Ranges" (Below) for Additional Capacity Data.
WORK TABLE:
Minimum ~ Maximum Table Speed 10 RPM ~ 1000 RPM
Table Drive Power 1.1 kW 1.5 HP
Table Drive Torque 20 Nm 14.75 ft lbs.
Table Bore Diameter 15 mm
Table Outside Diameter 48 mm
HOB HEAD:
Maximum Hob Diameter 30 mm 1.2"
Maximum Hob Length 30 mm 1.2"
Minimum ~ Maximum Hob RPM 100 RPM ~ 6000 RPM
Hob Head Maximum Torque 6.4Nm 4.72 ft lbs.
Hob Spindle Power 1.1 kW 1.5 HP
Hob Arbor Diameter (STD) 8 mm 0.3"
Hob Arbor Diameter (OPT) 8 mm / 10 mm / 13 mm - OR - Inch Sizes
Maximum Hob Shift Travel 25 mm 1.0"
Hob Swivel Angle (STD) ±45 Degrees
Hob Swivel Angle (OPT NC Control) ±45 Degrees - OR - +65/-25 Degrees
Hob Arbor Taper NT#20 Taper
WORKING RANGES:
X-AXIS:
Radial Minus / Plus limit 5 mm ~ 55 mm 0.2" ~ 2.2"
Total Radial Travel 50 mm 2.0"
Z-AXIS:
Axial Minus / Plus Limit 110 mm ~ 160 mm 4.3" ~ 6.3"
Axial Travel 50 mm 2.0"
TAILSTOCK:
Tailstock Minus / Plus limit 168 mm ~ 208 mm 6.6" ~ 8.2"
Tailstock Body Travel 40 mm 1.6"
Tailstock Quill Travel 40 mm 1.6"
Tailstock Force 1256 Nm 926 lb ft.
FEED RATES:
Radial (X) Cutting 0.1 ~ 500 mm/min 0.004 ~ 19.68"
Radial (X) Rapid 6 m/min 236.2 inch/min
Axial (Z) Cutting 0.1 ~ 500 mm/min 0.004 ~ 19.68"
Axial (Z) Rapid 6 m/min 236.2 inch/min
Tangential (Y) 3 m/min 118.1 inch/min
MISCELLANEOUS SPECIFICATIONS:
Number of Axes (STD) 5 X = Radial Feed
Y = Hob Shift
Z = Axial Feed
B = Hob Spindle
C = Work Table
Number of Axes (OPT) 7 A = Hob Head Swivel
C2 = Tailstock Sync Counter Spindle
CNC Control Fanuc 31i-MF
Machine Length 1400 mm 55.1"
Machine Width 1380 mm 54.3"
Machine Height 1865 mm 73.4"
Machine Weight 1500 kg 3,307 lbs.
Voltage 230 VAC 3 Phase
Frequency 50/60 Hz
Load 8 kVA
AVAILABLE SOFTWARE / MACHINE FUNCTIONS:
One way cutting.
Double cutting (2 cycle).
Double cutting (conventional / climbing).
Crowning (Lead) cut.
Taper cutting.
Inch/Metric Switching/Conversion.
Automatic hob shift - both directions.
Working Hour / Working Counter.
Tailstock (Pressure Control).
Stored Program Memory - Maximum 53 pcs.
OPTIONAL MACHINE ITEMS (SPECIFIC TO APPLICATION):
Chip Conveyor for DRY Hobbing (in Lieu of WET - STD).
Chip Conveyor for DRY / WET Hobbing - for ability to switch types.
A-Axis Hob Head Swivel (NC Conversion) - specify ±45 Degrees - OR - +65/-25 Degrees.
X-Axis Retract Function - Power Failure Protection.
Hydraulically Actuated Deburring Slide System.
Tailstock Synchronized Counter Spindle (C2 Axis).
Electrical Cabinet A/C System.
Base N40 Machine w/CNC Control - Fanuc 31i w/5 Axes of Control.
Automatic Lubrication System.
Automatic Hob Arbor Clamping System.
Full Machine Enclosure w/150mm Dia. Mist/Dust Collection Flange.
LED Lighting.
3 Color External Signal Lamp.
Mist Collector.
One Hob Arbor with Spacers.
Hob Arbor Counter Bearing Assembly.
Chip Conveyor or WET Hobbing.
Chip Box.
Oil Temperature Cooler (Chiller).
