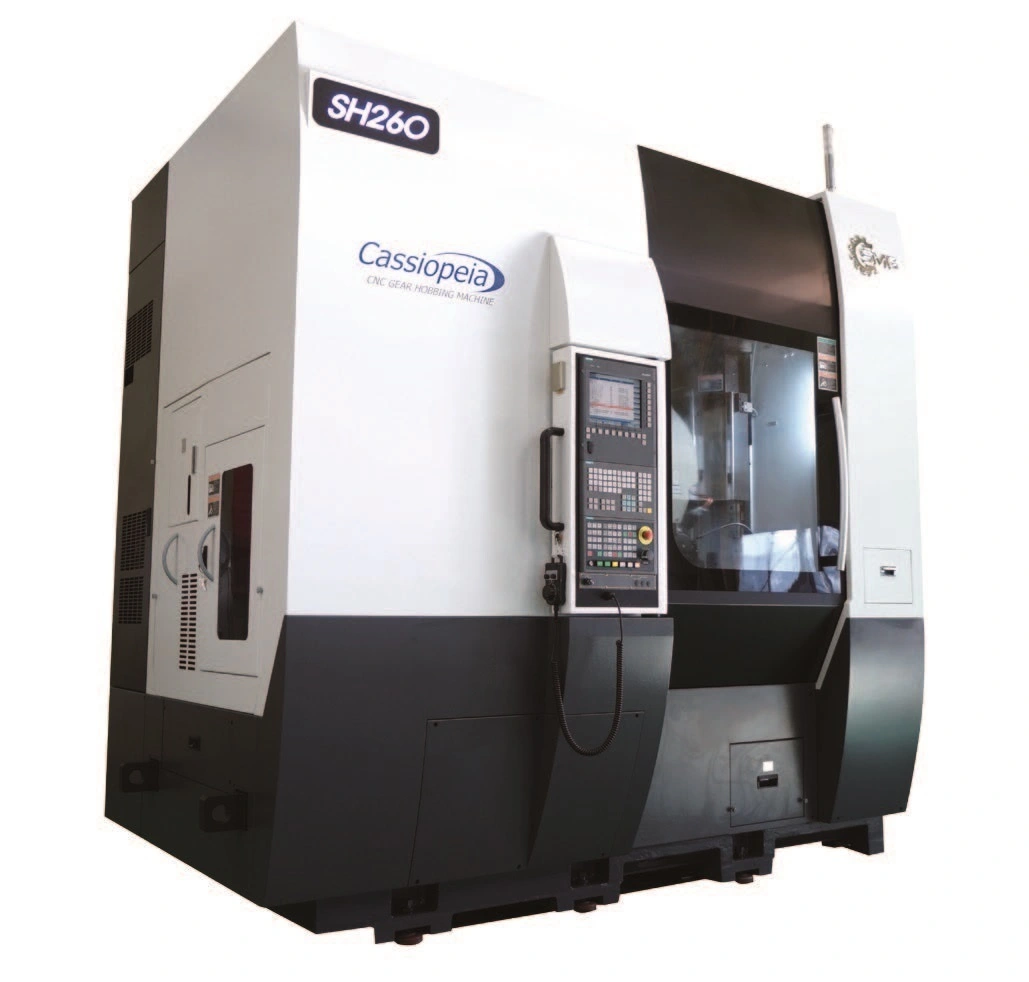

SMG SH260 Gear Hobbing Machine
Have one to sell?
ConditionNew
New
Newest competitively priced 260-350mm High Performance Gear Hobber from SMG out of South Korea. Fanuc 0i-MF or Siemens 840 CNC Torque motor table design Motorized hob head Conversational Programming Optional Ring Loader and Magazine available Robot load interface available Skiving/Auto Stock division Option available Wet or Dry cutting standard Hob presetting station is standard
Machine Capacity
Max. Workpiece Diameter Φ260 mm
Max. Module M6
Max. Table Speed 300 rpm
Table Diameter Φ240 mm
Base Jig Diameter Φ170 mm
Hob Head
Max. Hob Dia./Length Φ180/220 mm
Max. Hob Speed 2000 rpm (Opt.1000rpm,1500rpm)
Max. Hob Shift(Y-axis) Travel 200 mm
Hob Swivel Angle ±45º
Hob Arbor Taper BBT #40
Hob Spindle Output(Rated) 12 kW
Working Range
X-axis Travel(Radial) 270(15~285) mm
Z-axis Travel(Axial) 370(200~570) mm (Opt. 600(200~800)mm)
Tail stock Center Travel 400(265~665)mm
Rapid
X-axis Rapid(Radial) 12 m/min
Z-axis Rapid(Axial) 12 m/min
Y-axis Rapid(Tangential) 5 m/min
Other Specification
Number of Axes 6(X,Y,Z,A,B,C)
CNC Control System Siemens 840D SL Fanuc 0iM-F is an Option
Floor Space(L x W x H) 2741 x 3238 x 2990 mm
Machine Weight 9500 kg
Machine Capacity
Max. Work Dia.(Automation) Φ260 mm
Max. Module M6
Max. Table Speed 300rpm
Table Diameter Φ240 mm
Base Jig Diameter Φ170 mm
Full Splash Guard Open Top
Table Base Standard
Tail Stock Head Standard
X-axis Travel(Radial) 270(15~285) mm
Max. Hob Dia./Length Φ180/220 mm
Max. Hob Speed 2000rpm
Max. Hob Shift(Y-axis) Travel 200 mm
Hob Head Gear Ratio 3:1
Hob Spindle Output(Rated) 12kW
Fanuc 0i-MF or Siemens 840 CNC
Torque motor table design
Motorized hob head
Conversational Programming
Optional Ring Loader and Magazine available
Robot load interface available
Skiving/Auto Stock division Option available
Wet or Dry cutting standard
Hob presetting station is standard
