SMG SH310 Gear Hobbing Machine
Have one to sell?
ConditionNew
New

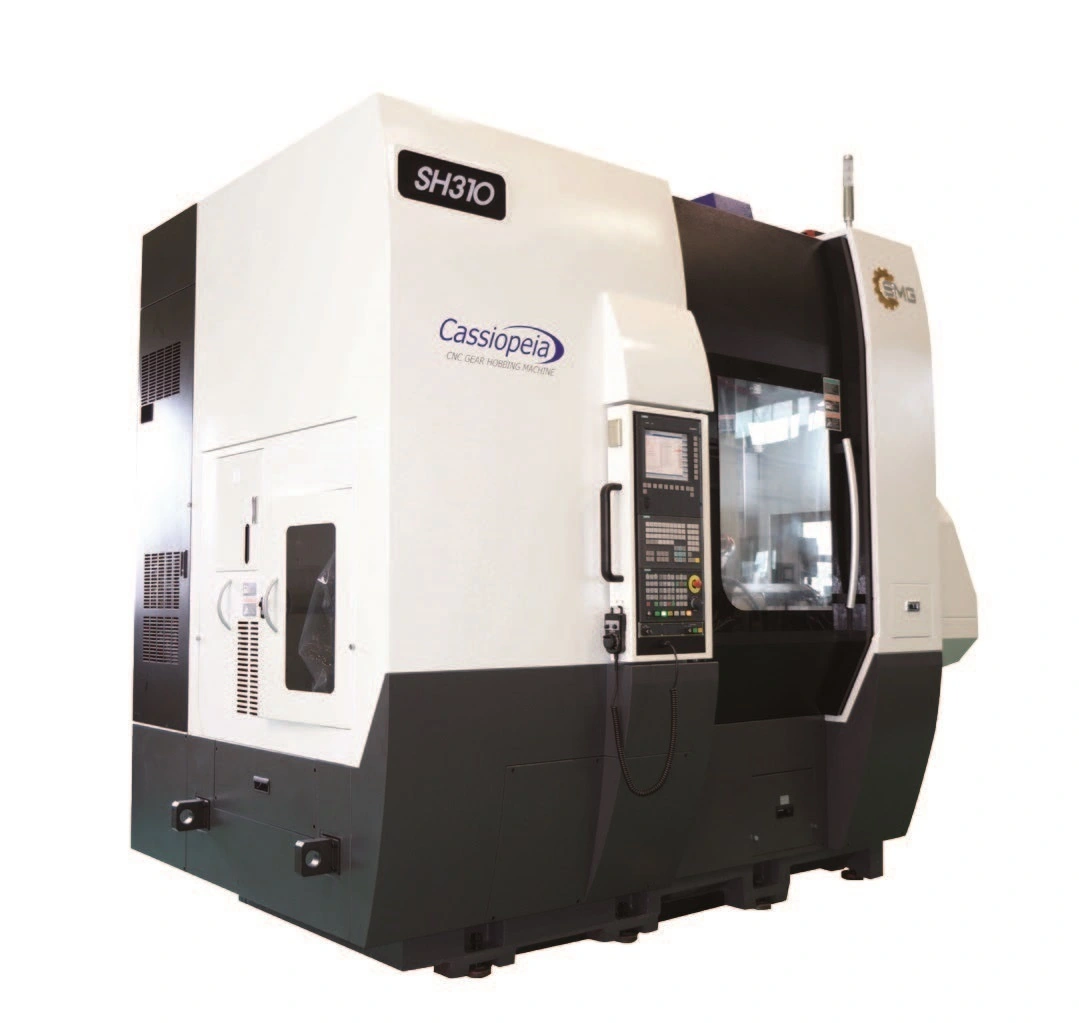

The Newest 310-350 mm High Performance Gear Hobber 'Casseopeia,' from SMG of South Korea. Featuring box-way construction throughout the series, these machines include either Fanuc 0i-MF or Siemens 840 CNC controls. High-Torque Direct-Drive motor table design, Motorized hob head with Conversational Programming, Optional Ring Loader & Magazine available. Robot load interface available. Skiving/Auto Stock division Option available. Wet or Dry cutting capability with standard Hob presetting station included mounted to the machine base.
MACHINE CAPACITY:
Max. Workpiece Diameter (w/Automaton): 310 mm / 12.204".
Max. Module / Dp: M6 / 4.233Dp.
Max. Table Speed: 300 rpm.
Table Diameter: 240 mm / 9.44".
Base Fixture Diameter: 210 mm / 8.27".
HOB HEAD:
Max. Hob Dia./Length: 190/230 mm / 7.48/9.06".
Max. Hob Speed: 1500 rpm (Opt.1000rpm,2000rpm).
Max. Hob Shift(Y-axis) Travel: 210 mm / 8.27".
Hob Head Gear Ratio: 4:1.
Hob Swivel Angle: ±45º.
Hob Arbor Taper: BBT #40.
Hob Arbor Diameter: 32mm / 1.25" - Customer to Specify.
Hob Spindle Output (Rated): 12 kW / 16 HP.
WORKING RANGE:
X-axis Travel (Radial): 270 (15~285) mm (Opt. 320 (15~335)mm) / 10.629"(.59-11.22") (Opt. 12.6"(.59-13.19").
Z-axis Travel (Axial): 370 (200~570) mm (Opt. 600 (200~800)mm) / 14.57"(7.87-22.44") (Opt. 23.62"(7.87-31.50").
Tail stock Center Travel: 400 (265~665) mm / 15.74"(10.43-26.18").
RAPID FEED:
X-axis Rapid(Radial): 12 m/min / 39 Fpm.
Z-axis Rapid(Axial): 12 m/min / 39 Fpm.
Y-axis Rapid(Tangential): 5 m/min / 16 Fpm.
OTHER SPECIFICATIONS:
Number of Axes: 6 = (X,Y,Z,A,B,C).
CNC Control System: Siemens 840D SL / Fanuc 0iM-F.
Floor Space(L x W x H): 2741 x 3238 x 2990 mm / 108" x 127.5" x 117.8"
Machine Weight: 9500 kg / 21,000 lbs.
Enclosure Details: Open Top.
STANDARD ACCESSORIES:
X-Axis Hob Retract System - UPS.
Inner SUS Cover & Air Blow System.
Wet & Dry Cutting System.
Hydraulic Unit.
Lubricating Pump & Tank.
Hob Presetting Unit.
C-Axis Oil Chiller / Table Temperature Compensation.
LED Work Lights.
Standard Tools & ToolBox.
Electrical Cabinet Air Conditioner.
Leveling Bolts & Base Plate.
Operating Manuals.
Installation & Commissioning.
OPTIONAL ACCESSORIES:
X-Axis Stroke Extension (See Above).
Z-Axis Stroke Extension (See Above).
Hob Tool Wear & Tool Breakage Monitoring by Artis-Marposs.
Mist Collector.
Hob Arbor Set w/Spacers (Additional) - Customer to specify mm or inch size(s).
Workholding Set(s) - Customer to Specify.
Magnetic Chip Conveyor & Coolant Tank.
Automatic Door.
Deburring Unit.
Chamfering & Deburring Unit.
Chamfering Cutter & Fixture.
Steady Rest.
Coolant Oil Chiller.
Minimum Quantity Lubrication (MQL) System.
Skiving Unit.
Standard 2-Position Ringloader.
Standard 4-Position Ringloader.
Ringloader Gripper Jaw Set(s).
Pallet-Type Stocking System & 2-Axis Gantry.
Automatic Workpiece Safety Device - Prevention of repeated machining of hobbed workpieces.
Automation Integration Interface.
Power Transformer.
