TEC For Gears - RGC 350 Chamfering Machine
Have one to sell?
ConditionNew
New

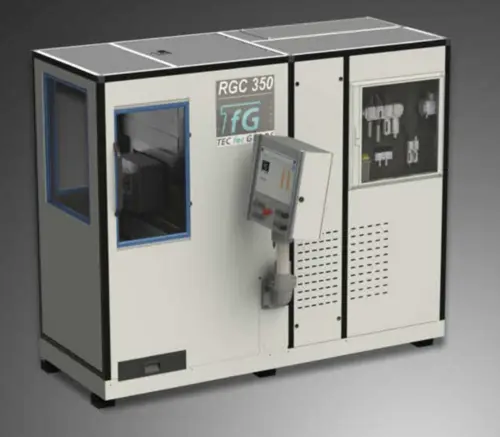

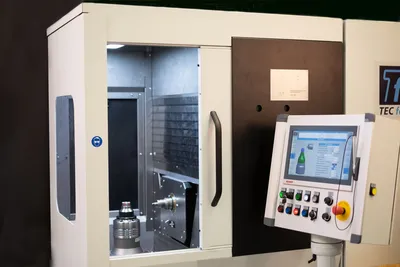

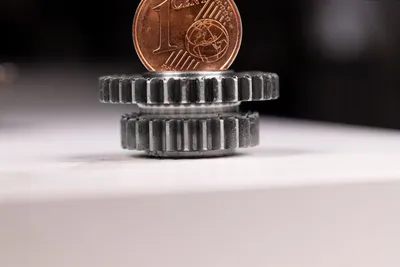

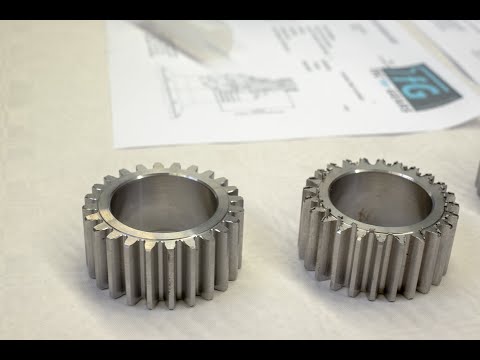

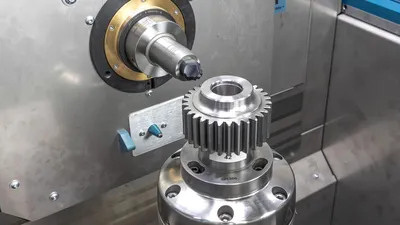

The RGC 350 is a compact, stand-alone gear chamfering and deburring machine built around the Radial Gear Chamfering (RGC) process. It produces precise, repeatable chamfers on tooth edges—even on components with challenging geometries such as shaft shoulders, multiple gears, or other interfering contours. Operating in a high-speed dry cutting environment, the machine delivers consistent edge quality with short cycle times and minimal environmental impact.
Designed for maximum flexibility, the RGC 350 can process a wide range of components including spur gears, splines, sprockets, bevel gears, and worm gears. Its stand-alone configuration allows it to support multiple upstream machines—hobbing, shaping, or skiving—eliminating deburring bottlenecks and improving overall production flow. Changeovers are quick and straightforward, supported by an intuitive operator interface and excellent machine accessibility.
With a footprint of approximately 2.5 m², the RGC 350 fits easily into existing shop layouts while providing a highly efficient, cost-effective solution for modern gear finishing. By decoupling chamfering from the primary cutting process, manufacturers gain increased utilization, simplified setup, and the ability to process a broader range of parts without compromise.
Tariff number: 84.61.40.71
Tec4Gears Chamfering Machine Model RCG350 Specifications:
WORKPIECE: METRIC INCH
Outer Diameter 300 mm 11.81"
Length 350 mm 13.78"
Module 6 Mod 4.23DP
MACHINE:
Control: Beckhoff CX5140
Tool Spindle Power 11.3kW 15.15HP
Tool Spindle Max Speed 17000 17000 RPM
C Axis (Workpiece Axis):
Work Spindle Power 1.8kW 2.41HP
Work Spindle Max Speed 1500 1500 RPM
X Travel 170mm 6.69"
Z travel 355mm 13.98"
-------------------------------------------
X Travel Minimum 5mm 0.20"
X travel Maximum 170mm 6.69"
Z Travel Minimum 97.5mm 3.84"
Z Travel Maximum 452.5mm 17.81"
-------------------------------------------
Rapid Travel 20,000mm/min 787.40"/min
TOOL:
Milling Arbor Taper HSK-F62 HSK-F62
ELECTRICS:
Total Connected Load 32kVA 67A
Rated Power 32kW 67A
Voltage 400 480 VAC 3Phase
Air Volume 12.5L/Min 12.50 L/min
Air Pressure 6 Bar 87PSI
DIMENSIONS:
Width 1000mm 39.37"
Length 2400mm 94.49"
Weight 3000kg 6614lbs
INFORMATION:
Required operating materials - included.
MACHINE CAPACITIES:
Central Lubrication Oil: Shell Tonna S3 M 220.
Max. Filling quantity: 50.7 Oz. 1.5 liters.
Oil Lubricator - Clamping Cylinder Workpiece: Festo OFSW-32
Max. Filling quantity: 1.01 Oz 30 cm³.
Cooling Air Conditioner Medium: Water-Glycol Mixture (80:20)
Max. Filling quantity: 15 Liters 3.96 US Gallons
