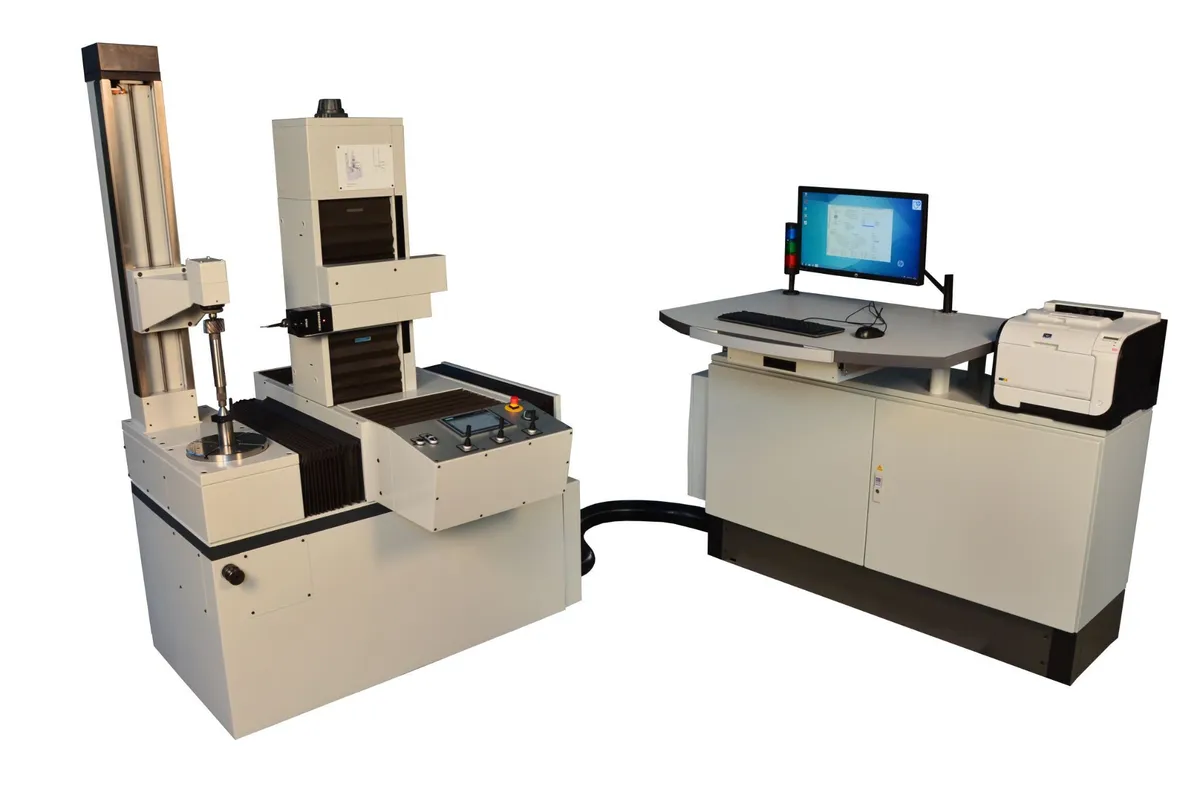

Donner + Pfister SP6500 Analytical Gear Inspection Machine

SP 6500 GEAR MEASURING CENTERS Machine The SP-6500 CNC gear measuring centers based on MAAG SP65 have been designed especially for rapid, automatic and precision checking of all important gear tooth deviations on: - External and internal spur and helical gears - Gear cutting tool - Hobs Maximal external diameter up to 650 mm (25.59 in.) Operation The Windows program guides the operator through the setting up and the measurement, the tuition time is minimal, the measurements are performed automatically.For setting, the movements in the individual axes can be controlled manually from the control panel of the machine.This is usually limited to clearing the necessary loading space for the particular workpiece and the operating of the tailstock. Special safety devices with circuits entirely separate from the computer have been incorporated for the protection of the operator, the machine and the workpieces.The drives are stopped if they exert excessive loads on the workpiece, the probe or the end stops. Double push button Operation also safeguards against unintentional release of the tailstock Measuring functions and capabilities Involute spur and helical gears, external and internal, Hobs - Profile - Helix - Single and accumulated pitch - Max. number of individual measurement per set of teeth 99 - Hobs on request Test results and their analysis according to DIN, ISO, AGMA - Profile Fα, ffα, fHα, fHαm - Helix (tooth alignment) Fβ,ffβ, fHβ, fHαm - Crown Cα, Cβ - Pitch Fp, Fpk, fpt, fu - Runout Fr With optional software: Tolerance bands fT Quality numbers as per ISO, DIN, AGMA Tooth thickness s, (Wk) Comparison of actual an specified values Preparation of data for statistical analysis Customized options possible
Max. external diameter for: SP6500
external gears 650mm
internal gears 730mm
Base circle diameter for:
external gears min./max. 0/630 mm
internal gears min./max. 20/630 mm
Helix angle +/-90°
Module (Pitch) min./max. 0.5/15
Max. face width 400mm
Center distance min./max. 35/900 mm
Weight of workpiece including fixture max. 500kg
Weight of machine, net 1880 kg
Movements
X axis, tangential slide +/-190 mm
Y axis, carriage 340 mm
Z axis, vertical slide 400 mm
Working speed, X, Y and Z axes, max. 10 mm/s
Rapid traverse, X, Y and / axes, max. 20 mm/s
Taxis, radial probe slide stroke 37 mm
Traverse speed max. 30 mm/s
Axis, table rotation n x 360°
Working Speed 3 rpm
Rapid Speed 6 rpm
Ultra-high accuracy scanning probe < 0.02 μm
