SMG H90 Horizontal CNC Gear Hobbing Machine w/Automation
Have one to sell?
ConditionNew
New

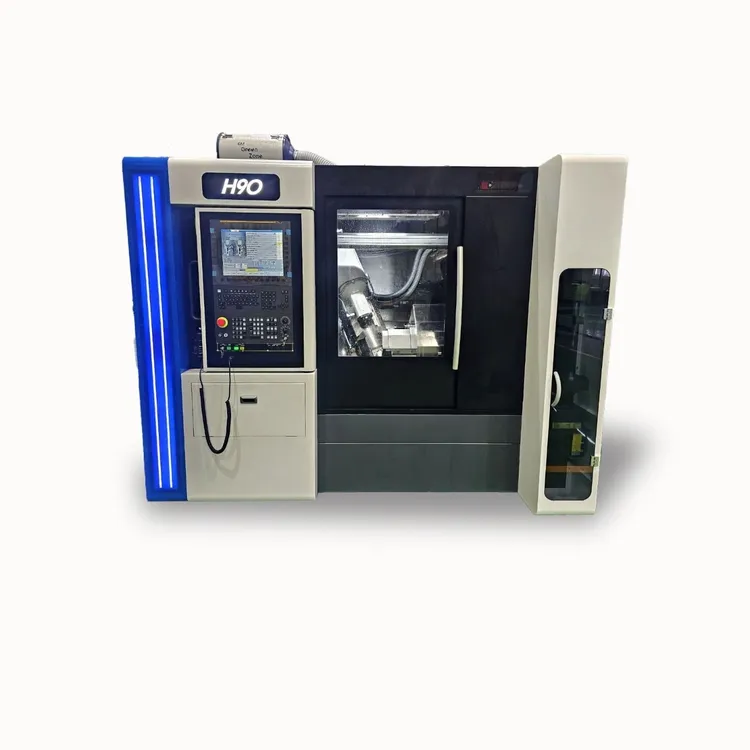

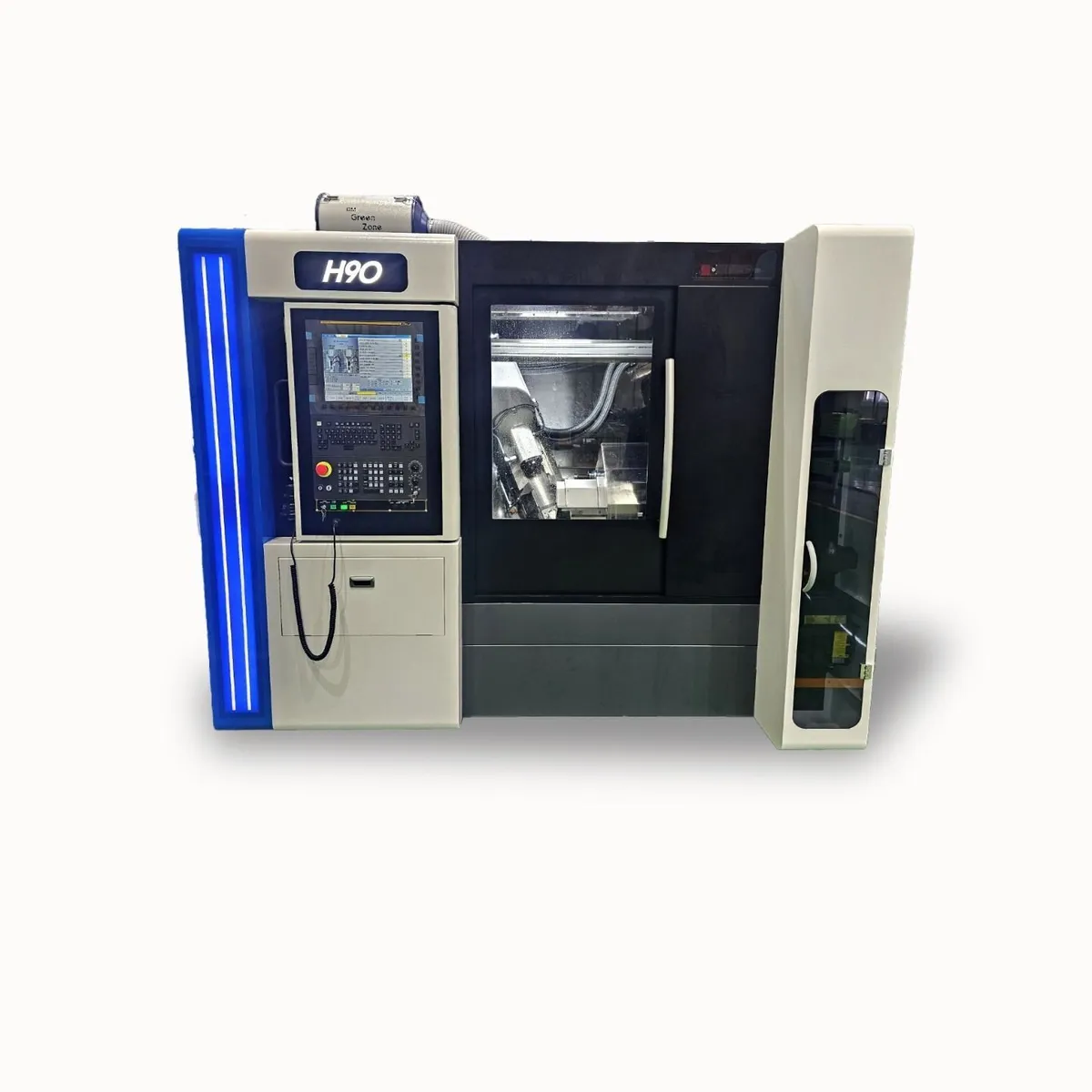

Introducing the New H90 Horizontal CNC Gear Hobbing Machine from SMG.
Engineered in South Korea by SMG, the all-new Model H90 sets a new standard for precision, flexibility, and efficiency in automated gear hobbing solutions. Designed from the ground up in collaboration with real-world users — both from SMG and competitive platforms — the H90 addresses key limitations of conventional machines with a forward-thinking, production-ready design.
At the core of the H90 is a powerful, compact hobbing solution with integrated automation, offering support for both puck- and shaft-style gears. It’s optimized for DRY & WET processing, built on a rigid, modular frame using proven componentry (from the Vertical SH Series platforms) for high-uptime and simplified maintenance.
With 100 mm of maximum workpiece diameter (with automation), the H90 is ideal for job shops and high-throughput environments alike. For manually loaded operations, it offers a generous 125 mm OD capacity, making it an excellent fit for precision manufacturers seeking a small footprint with big performance.
Key Features:
-Horizontal CNC gear hobbing with direct-drive technology.
-Modular automation architecture for manual or auto-load configurations.
-DRY / WET cutting compatibility.
-Available with Fanuc or Siemens CNC controls.
-Torque motor rotary tables, geared hob heads, and conversational programming.
-Includes a hob pre-setting device as standard.
With global installations running 24/7 in both job shop and volume production settings, the H90 is a robust, cost-effective answer for manufacturers who demand performance, reliability, and long-term flexibility.
SMG H90 (BUILD TO ORDER) SPECIFICATIONS:
MACHINE CAPACITY: METRIC INCH
Max. Workpiece Diameter with Gantry Loader: Φ100 mm 3.94"
Max. Workpiece Diameter Manual Load: Φ125 mm 4.92"
Max. Workpiece Length: 470 mm 18.50"
Max. Module: M3 8.467DP
See "Working Ranges" (Below) for Additional Capacity Data.
WORK TABLE:
Max. Table Speed: 1000 rpm
Table Diameter: Φ105 mm 4.13"
HOB HEAD:
Max. Hob Diameter/Length: 118 / 180 mm 4.65" / 7.09"
Hob Speed Range: 6000 rpm
Hob Spindle Output: 23.1 kW 31 HP
Max. Hob Shift(Y-axis) Travel: 140 mm 5.51"
Hob Swivel Angle: +45 Degrees / -110 Degrees
Hob Arbor Taper: BT #30
Hob Arbor(s): Φ32mm Diameter Standard - Can Be Customized, Specify with Order.
(8, 10, 13, 16, 19.05, 22, 22.2225, 25.4, 27, 31.75, 32, 38.1 & 40mm)
WORKING RANGES:
X-Axis:
X-Axis Travel (Radial): 90(10~100)mm 3.54(0.39~3.94")
Z-Axis:
Z-Axis Travel (Axial): 470(80~550) mm 18.5"(3.15"~21.65")
TAILSTOCK:
Tailstock Center Travel: 370 mm 14.57"
FEED RATES:
X-Axis (Cutting): 0.1 ~ 500 mm/min 0.004 ~ 19.68"
X-Axis Rapid(Radial): 10 m/min 394 ipm
Z-Axis (Cutting): 0.1 ~ 500 mm/min 0.004 ~ 19.68"
Z-Axis Rapid(Axial): 10 m/min 394 ipm
Y-Axis (Cutting): 0.1 ~ 500 mm/min 0.004 ~ 19.68"
Y-Axis Rapid (Tangential): 5 m/min 472 ipm
_______________________________________________________________________________
MISCELLANEOUS SPECIFICATIONS:
Number of Axes: 7 (X = Column Travel - Radial)
(Y = Hob Shift)
(Z = Hob Head - Axial)
(A = Hob Head Swivel)
(B = Hob Rotation)
(C = Table Rotation)
(W = Gantry System)
CNC Control Systems: Fanuc 0iM-F - OR - Siemens 840D SL - is an Option
All SMG Machines incorporate UPS Systems - Automatic Power Failure Retract Systems.
Floor Space(L x W x H) : 3400 x 2600 x 2200 mm 133.9" x 102.4" x 86.6"
Machine Weight : 5,500 kg 12,125 lbs
Operating Voltage +10/-5%: 220, 3 Phase VAC
CHIP CONVEYORS:
Magnetic Scraper-Type Conveyor (Standard): Ferrous Materials
'Smart' Hinge Chain Drum-Type Conveyor (Optional): Ferrous or Non-Ferrous Materials
'Smart-+' Hinge Chain Drum-Type Conveyor (Optional)*: Ferrous or Non-Ferrous Materials
* Incorporates Coolant Recovery Device.
MACHINE APPLICATION DETAILS & OPTIONS:
- Hobbing (axial, radial/axial) of spur and helical gears using one or multiple cut technology using climb or conventional feed with HSS or carbide hobs.
- Disc and shaft type workpieces.
- Spur and Helical Gears.
- Small Cone Gears.
- Cylindrical, Crowned or Tapered Gears.
- Special Profiles (Splines) with Special Tools.
- Worm (Wheel) Gear Hobbing.
- Worm Milling Capable - Single & Multi-Start
- Tangential Hobbing Operation.
- Sprocket Hobbing.
*The above mentioned technical data may vary depending on the geometry of the workpiece to be machined and on the loading system and workholding fixtures used.
- This machine has been specifically developed for DRY hobbing operations and high speed cutting.
- This machine can be operated either DRY or WET with appropriate countermeasures; best to specify DRY or WET at time of order.
- Includes FULL Enclosure - Closed Top with opening for mist collector connection.
- Inner Stainless Steel Way Covers.
- Includes Hob Tool presetting station.
- Torque motor table design.
- Chiller Unit Integrated into Machine.
- Temperature Compensation is Standard.
- Central Lubrication System for all guideways and required positions. PLC controlled.
- Geared hob head with anti-backlash design.
- Skiving / Auto Stock Division Option Available.
- Optional Deburring / Chamfering Station Available.
- Optional Workpiece Stocking Systems / Conveyors Available.
- Robot Load Interface Option Available.
- Automatic Operator Door Option Available.
- Conversational Programming Standard - no need to know G or M Codes.
- Part Seat Confirmation System Available.
- Steady Rest Available - for Shaft-Type Parts Support in Tailstock.
- Coolant Oil Chiller Available.
- Minimum Quantity Lubrication Unit Available - for Dry Cutting.
- Disc-Type Pre-Deburring Device Available.
- Oil Mist Collector Available.
- Hob Tool Wear Monitoring System Available.
- Complete Workholding Systems Available.
- Complete Ancillary Automation Systems Available.
- Warranty Period - 1 Year Standard.
- Production Lead Time: 6 - 9 Months Dependent Upon Backlog at Time of Order.
U.S. Spec Machines will typically include the following:
- Standard Axial & Radial Travel Lengths.
- Mist Collector.
- Magnetic Chip Conveyor & Coolant Tank.
- Hob Tool Presetting Station.
- Additional Items listed above in Specifications.
