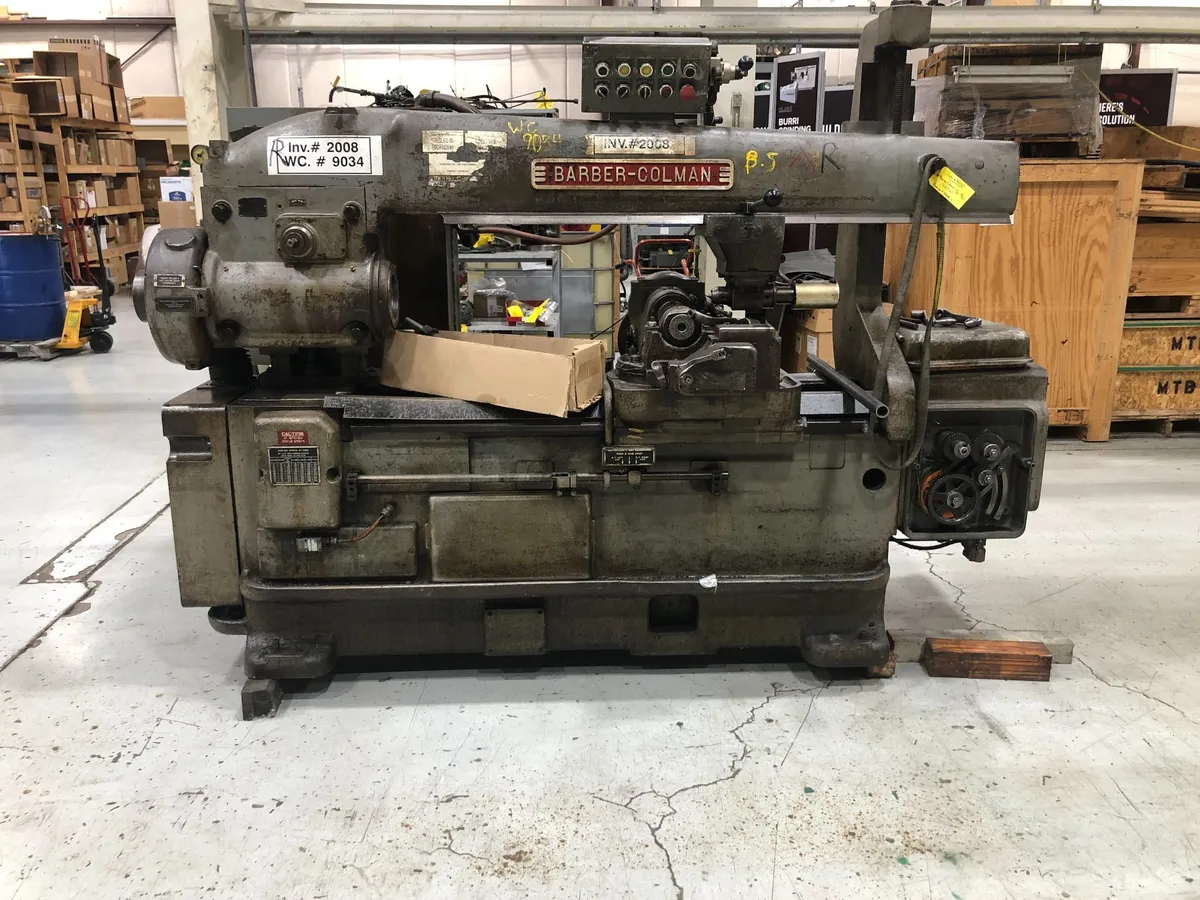

Barber Colman 16-36 Hobber
Have one to sell?
ConditionUsed
1 available
IN STOCK, BUILDABLE TO MEET SPECIFICATIONS:

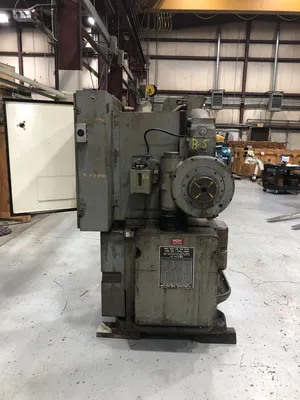

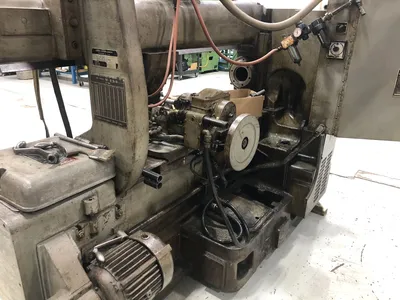

This Barber Colman long bed mechanical gear hobbing machine is a common machine but noteworthy due to its legendary capacity. It is suitable for making a variety of spline shafts or larger gears - with gears or splines at either end or in the center.
Features:

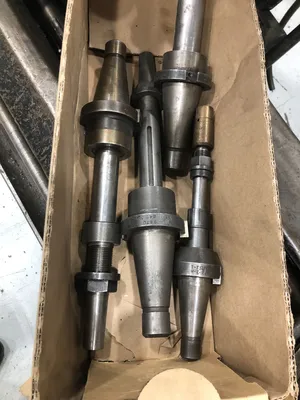

Hob arbor assortment
Air operated tail center
Automatic hob shift
Single Start Index Worm (Standard Accuracy)
OPTIONAL Machine Recertification Program:
All broken electrical wires and cables will be repaired
All cycles will be tested and verified as fully functional
All defective controls will be replaced or repaired
All defective sensors will be replaced
All features will be tested and verified as fully functional
All filters will be changed
All worn hoses will be replaced
Coolant system checked for problems
Coolant tank and chip collection system cleaned

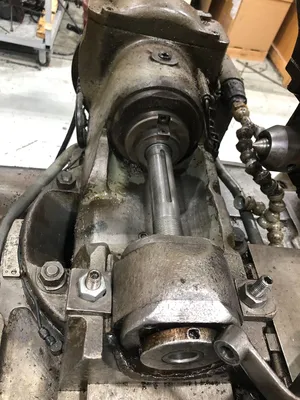

Hob head will be checked for problems
Hydraulic system drained and cleaned
Machine will be thoroughly cleaned
Ways and gibs checked for problems
Work table drive system checked for problems
The aforementioned description and listing of specifications and accessory equipment is correct and accurate to the best of our knowledge. However, it should not be considered binding in any regard, as we reserve the right to change and/or alter same without prior notice. Consequently the buyer is responsible for confirming same, upon physical inspection and inventory of the machine(s) and all related accessory equipment.
Pitch rating(Ideal Conditions) 6 DP 4.233333 Mod
Maximum workpiece diameter 16.000 in 406.4 mm
Maximum facewidth 13.000 in 330.2 mm
Maximum radial center distance 9.500 in 241.3 mm
Minimum radial center distance 1.250 in 31.75 mm
Maximum axial travel 15.000 in 381 mm
Maximum distance table
face to tail center 36.000 in 915 mm
Maximum distance table
face to C/L of hob 40.000 in 1016 mm
Minimum distance table
face to C/L of hob 3.500 in 88.9 mm
Worktable diameter 7.250 in 184.15 mm
Workhead spindle bore 3.125 in 79.375 mm
Index worm gear diameter 12.700 in 322.58 mm
Worktable Starts 1 Threads
Maximum hob diameter 5.000 in 127 mm
Maximum hob length 5.000 in 127 mm
Maximum hob shift travel 3.500 in 88.9 mm

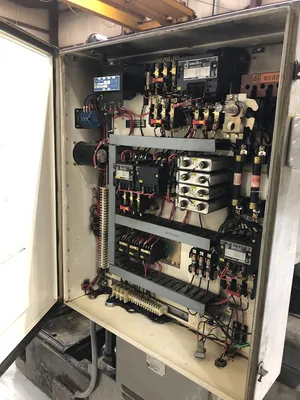

NO CNC - Relay Logic including timers & change gears.
Integral coolant tank, no conveyor.
No hob arbor. (One can be quoted additionally).
Assortment of change gears.
Two copies of the operations manuals.
Two copies of the maintenance documentation.
30 Day return warranty on the machine.
