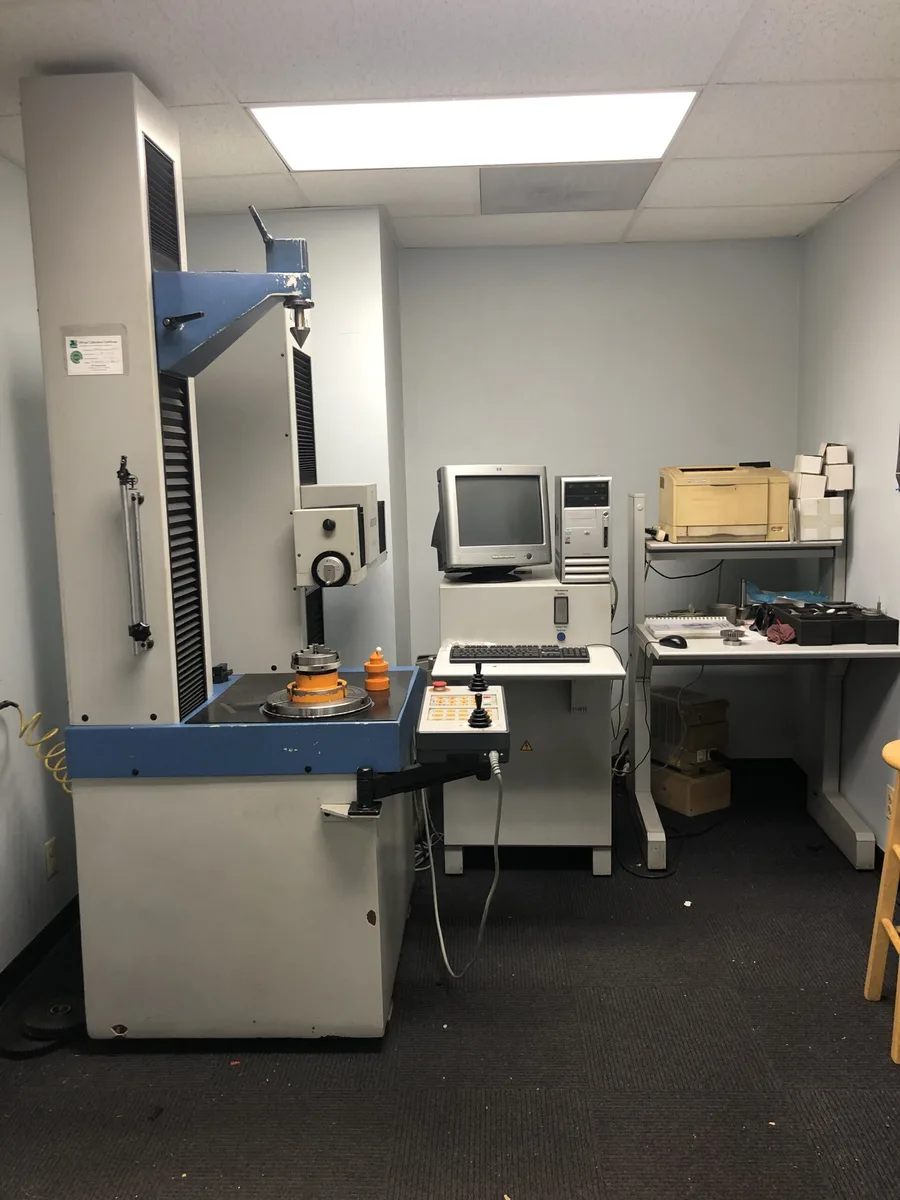

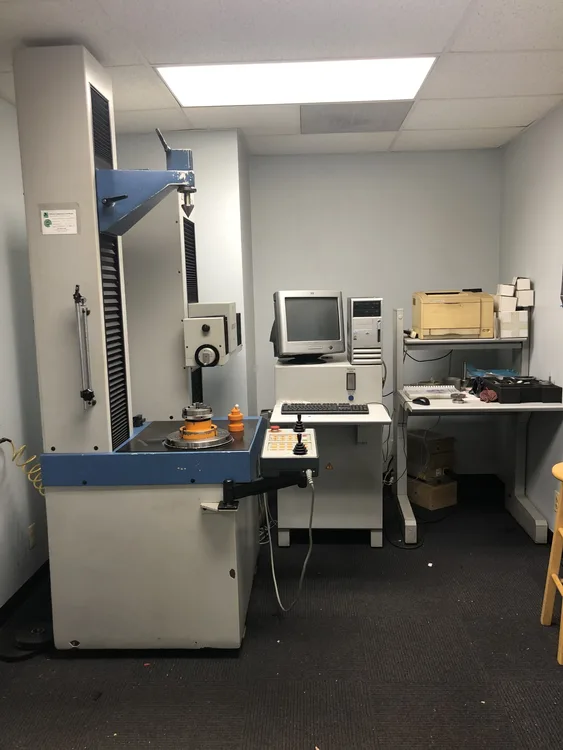

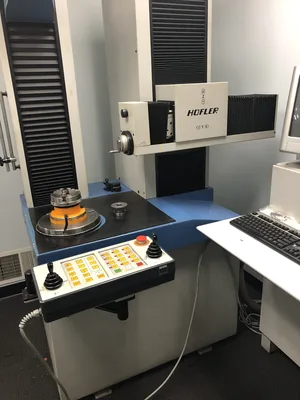

Hofler ZME 630 Gear Inspection Machine - Retrofit
Have one to sell?
ConditionUsed
1 available
This Hofler ZME 630 inspection machine will be recontroled with a Windows 10* and mechanically adjusted and refurbished for Machine Tool Builders by GTI.
*Windows 11 option available.
Expect 3 to 4 months delivery timeframe for refurbishment program from time of order.
MTB originally acquired this machine as part of a machine acquisition deal. We have used it successfully for many years, but need to to make room in our shop.

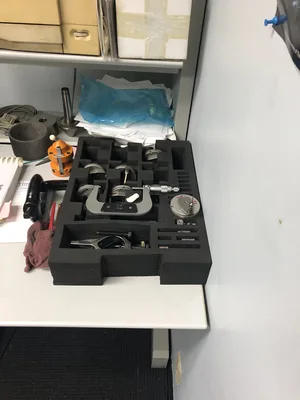

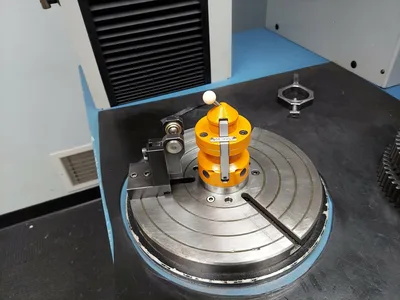

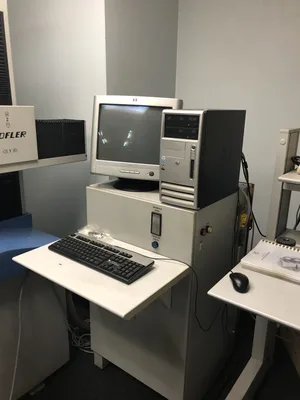

Machine Includes calibration artifacts, the probe attachments, Retrofitted Windows OS computer, the printer and the stands.
• Workpiece Diameter 5mm – 630mm (0.2″ – 24.8″)
• Minimum Internal Gear Diameter 20mm (0.8″)
• Module Range 1-20Mod (25.4 – 1.27DP)
• Max Helix Angle <90 Degrees
• X Travel Distance 230mm (9.0″)
• Y Travel Distance 340mm (12.6″)
• Z Travel Distance 500mm (19.7″)
• Measuring Head Axes 3
• Distance Between Centers 1000mm (39″)
• Table Load daN 350kg (770lbs)
• Overall Space requirement 9.8 Square Meters
